E 1 W Cable Gland
The Gland is made from high quality brass. It is used for all types of SWA cable. Clamping of the armour wire and for electrical continuity and mechanical retention of the cable are the main functions. Used in applications where it is essential to provide an IP66 seal on the outer sheath and either an IP66 or an explosion proof seal (certified version) on the inner sheath.

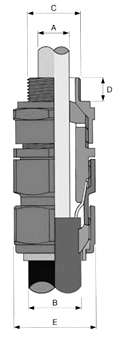

E 1 W Cable
Gland Size Standard Entry Threads "C" other options/sizes Min. Thread Length "D"   Armour Wire Dia. Max. Across Corner Dia "E"
Seal Ranges
Cable Dia. "A" Cable Diameter "B'
Metric NPT PG Standard Seal Thick Seal
Min. Max. Min. Max. Min. Max.
20/16 20 " 11 15 3.1 8.6 8.0 13.4 5.5 9.9 0.9 24.4
20S 20 " 13.5 15 6.1 11.6 11.4 15.9 7.0 12.4 0.9/
1.25
26.6
20 20 " 16 15 6.5 13.9 15.0 20.9 11.1 17.9 0.9/
1.25
33.3
25 25 3/4" 21 15 11.1 19.9 20.3 27.4 15.0 23.9 1.25/
1.60
40.5
32 32 1" 29 15 17.0 26.2 26.0 33.9 23.0 29.9 1.60/
2.00
51.0
40 40 1-1/4" 36 15 22.0 32.1 31.0 40.4 26.6 35.9 1.60/ 2.00 61.0
50S 50 1-1/2" 36 15 29.5 38.1 36.5 46.7 32.9 42.4 2.00/
2.50
66.5
50 50 2" 42 15 35.6 44.0 43.0 53.1 38.3 49.9 2.00/
2.50
77.7
63S 63 2" 48 15 40.1 49.9 48.9 59.4 44.6 55.9 2.50 83.2
63 63 2-1/2" - 15 47.2 55.9 58.0 65.9 51.5 58.9 2.50 88.7
75S 75 2-1/2" - 15 52.8 61.9 60.6 72.1 56.4 68.9 2.50 101.6
75 75 3" - 15 59.1 67.9 64.9 78.5 62.7 74.9 2.50/
3.15
111.1
90 90 3" - - 66.6 79.3 76.0 90.4 64.2 79.3 3.15 128.6
All Dimensions in Millimeters
