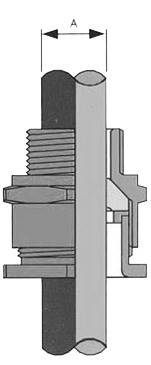

A 2 Type Cable | |||||||
Gland Size Ref. | Entry Thread | Cable Details Maximum Dia. | Overall Length "E" | Hexagonal
Details (Maximum) |
|||
Dia. "N" | Length "D" | "A" | "B" | "F" | "C" | ||
00 - 20SS | M20 | 10 | 3.0 | 8.0 | 18 | 25 | 28.5 |
0 - 20S | M20 | 10 | 7.0 | 11.0 | 18 | 25 | 28.5 |
1 - 20 | M20 | 10 | 11.0 | 14.5 | 20 | 27 | 30.0 |
2 - 25 | M25 | 10 | 14.5 | 20.5 | 25 | 35 | 38.5 |
3 - 32 | M32 | 10 | 20.5 | 26.5 | 25 | 42 | 48.0 |
4 - 40 | M40 | 15 | 26.5 | 34.5 | 28 | 52 | 59.0 |
5 - 50 | M50 | 15 | 34.5 | 43.5 | 30 | 65 | 72.0 |
6 - 63 | M63 | 15 | 43.5 | 56.0 | 35 | 82 | 97.0 |
7 - 75 | M75 | 15 | 56.0 | 65.0 | 40 | 96 | 112.0 |
8 - 82 | M82 | 15 | 65.0 | 74.0 | 50 | 100 | 113.0 |
*9 - 90 | M90 | 15 | 73.0 | 82.0 | 59 | - | 113.0 |
*All Dimensions in Millimeters - Dimensions may differ from published table. | |||||||
*Sizes 9 and 10 are of round slotted material. For use with "C" spanner. |
