Earthing Materials >>
Earthing Materials
99.9 % pure electrolytic copper molecularly bonded onto a steel core in accordance with national and international standards to a thickness of 0.25 mm. Note : Rods are not of the sheathed type. There is no metal interface. So dissimilar metal reaction cannot occur and the copper cannot be separated from the steel. The core is of low carbon steel of grade 080A20 of BS970 with a high tensile strength of at least 600 n / mm2. Threads are rolled onto the rod which ensures that an even copper covering is maintained, even at the root of the thread.

Earthing Rod Selection Chart

Nominal Diameter

Dimensions Length (mm.)

Thread Diameter
"A"

Shank Diameter
"B" ( mm. )

3/8"

1200

unthreaded

8.9

"

1200

9/16"

12.7

"

1500

9/16"

12.7

"

1800

9/16"

12.7

"

2400

9/16"

12.7

5/8"

1200

5/8"

14.2

5/8"

1500

5/8"

14.2

5/8"

1800

5/8"

14.2

5/8"

2400

5/8"

14.2

5/8"

3000

5/8"

14.2

3/4"

1200

3/4"

17.2

3/4"

1500

3/4"

17.2

3/4"

1800

3/4"

17.2

3/4"

2400

3/4"

17.2

3/4"

3000

3/4"

17.2

Earthing
Materials
Driving Heads / Studs / Tips, Dowell Pins
Made from High Tensile Steel to ensure force from power hammer. Dowell Pins are also made from High Grade Brass.

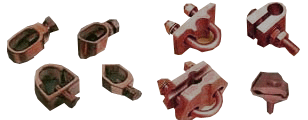

Clamps
Earth Plates
Earth plates are supplied in solid or lattice type. These can be supplied in solid copper or M.S. Copper Coated.
Lattice
Lattic size (mm)
500     X     500     X
                                3

600     X     600     X
                                3

900     X     900     X
                                3
Solid
Earth plate size (mm)
500     X     500     X
                                    3

500     X     500     X
                                    5

600     X     600     X
                                    3

600     X     600     X
                                    5
Bare Copper tape & tinned Copper tape
Enquires are also Solicited for bare copper tape, high conductivity, annealed, as per BS1432 - C101 and tinned copper tape, in any size including sizes from 20 x 3mm. to 50 x 6mm. - in coil form as well as in strip form.

From low budget housing - even M.S. hot dip galvanised earthing strips can be supplied.
Flexible Copper braid
Flexible Copper braid manufactured from high conductivity copper wire to BS4109 - C101, suitable for earthing bonding, can be supplied in roll form as well as cut length.
Crimping Type Tinned Copper Cable Lugs With/Without Inspection Hole
Range : 1.5mm2 to 1000mm2

Type : Heavy & Light

Stud holes and barrel length are available with various sizes and options as per buyer's requirement.
Soldering Type Tinned Copper Weak Back Ferrules
Range : 1.5mm2 to 1000mm2

Type : Heavy & Light

Stud holes and barrel length are available with various sizes and options as per buyer's requirement.
Tinned Copper End Sealing Ferrules
Range : 0.5mm2 to 35mm2
Crimping Type Tinned Copper Cable Lugs With/Without Inspection Hole
Range : 16mm2 to 400mm2
Range : 500mm2 to 630mm2
Tinned Copper Connectors With Solid Barriers
Tinned Copper Transformer Terminal Ends (4 Holes)
Tinned Copper Two Hole / Extended Palm Terminal Ends
Range : 25mm2 to 630mm2
Uninsulated & Insulated Terminal Ends
Range : 1.5mm2 to 1Omm2
Type Ring, Spade, Pin & Blade.
Range : 25mm2 to 1000mm2
Aluminium Long Barrel Lugs
Aluminium Long Barrel Through Connectors & With Solid Barrier
Range : 25mm2 to 1000mm2
