Pipe Clamps
Pipe Clamps
Clamps mounting systems :

    * Designed and manufactured as per DIN 3015 part 1, 2 & 3.
    * Ensures a simple, reliable dampening support for tubes, pipes, hoses and conduits.
    * Absorbs vibrations ,Reduce noise level ,Provides rigid support to the piping,  Reduces chances
       of leakage due to loosening of joints.

Application :
Industrial Hydraulics, Mobile Hydraulics, Marine Hydraulics, Offshore, General Industrial Pipe Construction
Mining Industry, Nuclear Reactor Construction, Instrumentation and Control Technology, Pneumatics

Specification : DIN 3015 Part 1 , DIN3015 Part 2, DIN 3015 Part 3

MATERIAL OF CONSTRUCTION :

    * JAWS : Poly Propylene, Poly Amide / Poly Amide GR, Aluminum.
    * TOP  & BOTTOM PLATE: M.S. Yellow plated / Phosphated, S.S. in natural finish.
    * BOLTS :   M.S. Yellow plated / Phosphated, S.S. in natural finish.

OTHER RANGE INCLUDES :

    * Construction series pipe clamps.
    * Flat steel 'U' bolt clamps.
    * Round steel 'U' bolt clamps.
    * Metal pipe clamps saddle type.
PIPE OD RECOMMENDED SPACING
6mm to 12.7mm 1meter
12.7mm to 22mm 1.2 meter
22mm to 32mm 1.5 meter
32mm to 38mm 2meter
38mm to 57mm 2.7meter
57mm to 75mm 3 meter
75mm to 88.9mm 3.5 meter
88.9mm to 102mm 4 meter
102mm to 114mm 4.5 meter
114mm to 168mm 5 meter
168mm to 219mm 6 meter
Material Specification for clamp jaws
Material Polypropylene PP Poly Amide PA Aluminum AL
Mechanical Properties

Tensile Stress

28 N/mm2 170 N/mm2 180 N/mm2

Flexural Deflection

36 N/mm2 130-200 N/mm2 -----------

Impact Resistance

no failure 60 KJ/m2 -----------

Compressive Strength

90 N/mm2 120 N/mm2 HB 500-600N/mm2

Modules of Elasticity

1150 N/mm2 3000 N/mm2 70000N/mm2
Thermal Properties

MAX. TEMP.

-300...+900C -400...+1200C UP TO +3000C
Electrical Properties

Specific Resistivity

1016Ohm x cm 1015Ohm x cm ----------
Chemical Properties

Chemical Resistance

Resistant to most
aqueous solutions
of inorganic salts,
minerals, and
organic acids,
even at high
temperatures.
Resistant to organic
solvents, dilute
acids, and bases.
Resistant to
radiation.
Resistant to
neutral and sea
water, organic
acids, esters, oils,
and inorganic
salt solutions.

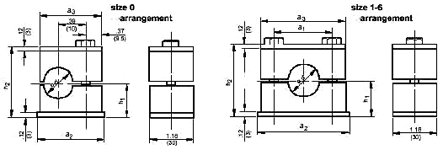

PIPE CLAMPS STANDARD SERIES DIN3015 PART -1
All dimensions are in mm
DIN /ME GROUP PIPE OD
D dia
a2 a3 a1 T h2
0 6 30 28 - 3 33
6.4
8
9.5
10
12
1 6 34 40 20 3 39
6.4
8
9.5
10
12
2 12.7 48 42 26 3 39
13.5
14
15
16
17.2
18
3 19 56 50 33 3 42
20
21.3
22
25
4 26.9 65 59 40 3 48
28
30
5 32 77 71 52 3 64
33.7
35
38
40
42
6 44.5 92 86 66 3 72
