4 Part Captive Cone
4 Part Captive
      Cone
For indoor use. Two piece handling. No loose parts. Freely rotating captive cone. Providing an armour clamp and earth bond without twisting the steel wire armouring adjustable bush for use with thick gland plates. By removing the outer nut and bushes the inners of sizes 1 to 4 can be used as metric reducers. Precision manufactured from high quality brass and nickel plated. Complete with high quality brass locknuts.
4 Part Captive Cone

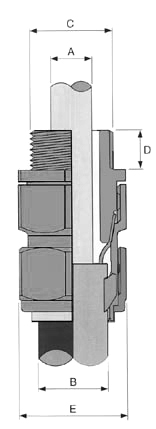

Gland Size Ref. Entry Thread Cable Details Maximum Dia. Overall Length "E" Hexagonal Details
(Maximum)
Dia. "N" Length "D" "A" "B" "F" "C"
0 - 20S M20 10 12.6 16.0 23 25 28.5
1 - 20 M20 10 15.9 19.0 26 27 30.0
2 - 25 M25 10 20.6 26.5 29 35 38.5
3 - 32 M32 10 26.5 33.0 32 42 48.0
4 - 40 M40 15 34.5 40.5 36 52 59.0
5 - 50 M50 15 44.6 51.0 45 65 72.0
6 - 63 M63 15 57.0 67.0 50 86 97.0
7 - 75 M75 15 68.0 79.5 60 96 112.0
8 - 82 M82 15 74.0 83.0 65 100 113.0
*9 - 90 M90 15 82.0 91.0 69 - 113.0
*10 - 100 M100 15 93.0 100.0 88 - 125.0
* All Dimensions in Millimeters - Dimensions may differ from published table.
*Sizes 9 and 10 are of round slotted material. For use with "C" spanner.
