Hoses
Stainless Steel Corrugated Hose and Metal Bellows
Hose Standard : BS 6501
Construction : Flexible tubing, single thick wall corrugation, without packing, annular corrugation hydraulically formed.
Profile : Close pitch corrugation Size Range:6 mm up to 350 mm
Pressure Range : Up to 150 kg/cm³ or higher against specific requirement.
Temperature : Up to 800°C
Core Material : 321/304/316/316L * Monel/Bronze.
Braid Material : SS 304/SS 321End Fittings :Tig welded, mechanical, soldered, silver brazed.
PTFE Plain and Corrugated Hose with Stainless Steel Braiding
Construction : smooth tube externally S.S. 304 Braided.
Chemical Resistance : unlimited against all chemical, acids and caustic solutions of any concentration.
Exceptions : Liquid alkali, metals and fluoride compounds.
Weather Resistance : Ozone and UV rays do not cause any meterial changes.
Ageing Resistance : practically unlimited, non-inflammable.
Food Suitability : physiologically unobjectionable, no transfer of tasteor colour.
End Connection : can be manufactured as per requirement.
Rubber Hoses
Applications for Acids and Chemica hoses
As per : IS : 7654
Size range : 3/4" ID upto 16" ID
Service : Dilute/Corrosive Chemicals
Material : NBR / EPDM / TFE / SBR / CSM / NR / CR / FPM / NR.
Fittings : Rubber / Slipon / Built in
Applications for Aviation fuel hoses
As per : IS:5797, BS 3158, EN 1361, API 1529.
Size range : 1" ID upto 3" ID
Service : Aviation Fuel
Material : Synthetic Rubber
Fittings : As per requirement
Applications for Cement and Gravel hoses
As per : IS 13071
Size range : 1/2" ID upto 16" ID
Service : Cement / Sand & gravel
Material : Synthetic Rubber
Fittings : Built in type connections
Applications for Food Hnadling hoses
Cover : SBR black, smooth fabric finish.
Reinforcement : textile plies, steel wires helix.
Size range : 3" ID & 4" ID
Service : for sugars, powders, granulates, grains and corn.
Fittings : As per your requirement
Hose quick Camlock Couplings

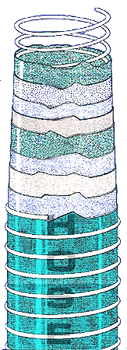

Composites Thermoplastic Hose Assembly
Inner Wire
Galvanised Carbon steel
Polypropylene-coated steel.
316 stainless steel
Aluminium
Standard
BS 5842
BS 3492 BX
BS 4089
Linning
Polypropylene
PTFE
Hostaflon
Polymide
Fittings
Flanged
Camlock
Threaded
Layers
Polypropylene fabrics
Polypropylene films
Polymide films
Polyester fabrics
Fire-resistant layers
Size
1" ID to 10" I.D.
Outer Cover
PVC-coated nylon
PVC-coated polyester
Application Chemical
Petrochemical
Cryogenic
POL products
Outer Wire
Galvanised carbon steel
316 stainless steel
Aluminium
Temperature Range
- 200 DEG C to + 160 DEG C
