Tee Fittings >>
Male Tee Parallel
Male Tee Parallel

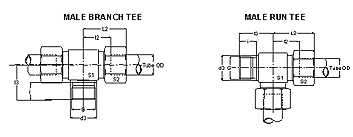

MALE STUD TEE (STUD END PARALLEL THREAD)
|
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | ||||||
| I3 | i | BSP THREAD | |||||||||
| G | PART NO. | ||||||||||
| METRIC SIZE TUBE | L | 160 Kg/cm2 | 22 | 32 | 36 | 44 | 27.5 | 42 | 16 | 3/4" | PE-MBT22L-G12 |
| 100 Kg/cm2 | 28 | 41 | 41 | 47 | 30.5 | 48 | 18 | 1" | PE-MBT28L-G16 | ||
| 35 | 50 | 50 | 56 | 34.5 | 54 | 20 | 1 1/4" | PE-MBT35L-G20 | |||
| 42 | 55 | 60 | 63 | 40 | 61 | 22 | 1 1/2" | PE-MBT42L-G24 | |||
| H | 400 Kg/cm2 | 20 | 32 | 36 | 48 | 26.5 | 42 | 16 | 3/4" | PE-MBT20H-G12 | |
| 25 | 41 | 46 | 54 | 30 | 48 | 18 | 1" | PE-MBT25H-G16 | |||
| 250 Kg/cm2 | 30 | 50 | 50 | 62 | 35.5 | 54 | 20 | 1 1/4" | PE-MBT30H-G20 | ||
| 38 | 55 | 60 | 72 | 41 | 61 | 22 | 1 1/2" | PE-MBT38H-G24 | |||
| NOTE: The part numbers given here are for Parallel Male Branch Tee.Corresponding part numbers for Parallel Male Run Tee can be obtained by substituting ‘MRT’ for ‘PE-MBT’. |
|||||||||||
MALE STUD TEE (STUD END PARALLEL THREAD)
|
||||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | I3 | i | BSP THREAD | ||||
| G | PART NO. | |||||||||||
| INCH SIZE OD TUBE | 6000 PSI | 1/4" | 0.67 | 0.67 | 1.18 | 0.59 | 0.88 | 0.38 | 1/8" | 4-2PE-MBTG | ||
| 1/4" | 0.75 | 0.67 | 1.32 | 0.69 | 0.94 | 0.43 | 1/4" | 4PE-MBTG | ||||
| 3/8" | 0.75 | 0.75 | 1.22 | 0.59 | 0.98 | 0.43 | 1/4" | 6-4PE-MBTG | ||||
| 3/8" | 0.87 | 0.75 | 1.29 | 0.94 | 1.06 | 0.5 | 3/8" | 6PE-MBTG | ||||
| 1/2" | 0.87 | 0.94 | 1.54 | 1.18 | 1.18 | 0.5 | 3/8" | 8-6PE-MBTG | ||||
| 1/2" | 1.06 | 0.94 | 1.5 | 1.14 | 1.3 | 0.63 | 1/2" | 8PE-MBTG | ||||
| 3/4" | 1.06 | 1.25 | 1.81 | 1.38 | 1.42 | 0.63 | 1/2" | 12-8PE-MBTG | ||||
| 3/4" | 1.25 | 1.25 | 1.93 | 1.5 | 1.61 | 0.75 | 3/4" | 12PE-MBTG | ||||
| 1" | 1.42 | 1.75 | 1.93 | 1.46 | 1.89 | 0.75 | 3/4" | 16-12PE-MBTG | ||||
| 1" | 1.61 | 1.75 | 2.13 | 1.65 | 1.97 | 0.87 | 1" | 16PE-MBTG | ||||
| 3000 PSI | 1 1/4" | 1.75 | 1.97 | 2.48 | 1.97 | 2.17 | 0.87 | 1" | 20-16PE-MBTG | |||
| 1 1/4" | 1.97 | 1.97 | 2.6 | 2.08 | 2.32 | 0.98 | 1 1/4" | 20PE-MBTG | ||||
| 1 1/2" | 2.16 | 2.36 | 2.83 | 2.24 | 2.4 | 1 | 1 1/2" | 24PE-MBTG | ||||
| NOM. BORE TUBE | 6000 PSI | 1/4" | 1 | 1.06 | 1.42 | 0.7 | 1.18 | 0.43 | 1/4" | 4PE-MBTNBG | ||
| 1/4" | 0.94 | 1.06 | 1.5 | 0.78 | 1.25 | 0.5 | 3/8" | 4-6PE-MBTNBG | ||||
| 3/8" | 1.06 | 1.25 | 1.69 | 0.93 | 1.38 | 0.5 | 3/8" | 6PE-MBTNBG | ||||
| 3/8" | 1.06 | 1.25 | 1.77 | 1.01 | 1.5 | 0.63 | 1/2" | 6-8PE-MBTNBG | ||||
| 1/2" | 1.18 | 1.41 | 1.89 | 1.04 | 1.57 | 0.63 | 1/2" | 8PE-MBTNBG | ||||
| 1/2" | 1.25 | 1.41 | 1.97 | 1.12 | 1.69 | 0.75 | 3/4" | 8-12PE-MBTNBG | ||||
| 3/4" | 1.42 | 1.61 | 2.03 | 1.06 | 1.97 | 0.75 | 3/4" | 12PE-MBTNBG | ||||
| 3000 PSI | 1" | 1.81 | 2.04 | 2.4 | 1.42 | 2.24 | 0.87 | 1" | 16PE-MBTNBG | |||
| 1 1/4" | 2.16 | 2.36 | 3.07 | 1.93 | 2.56 | 1 | 1 1/4" | 20PE-MBTNBG | ||||
| 2000 PSI | 1 1/2" | 2.5 | 2.75 | 3.15 | 2.05 | 2.83 | 1 | 1 1/2" | 24PE-MBTNBG | |||
