Tee Fittings >>

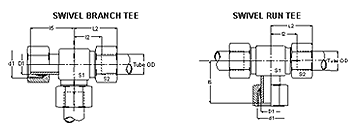

Swivel Tee
Swivel Tee
Swivel Tee
|
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | I5 | D1 | d1 | PART NO. | ||
| METRIC SIZE TUBE | L | 250 Kg/cm2 | 6 | 12 | 14 | 27 | 12 | 26 | 6 | M12 X 1.5 | PE-SwBT6L |
| 8 | 14 | 17 | 29 | 14 | 27.5 | 8 | M14 X 1.5 | PE-SwBT8L | |||
| 10 | 17 | 19 | 30 | 15 | 29 | 10 | M16 X 1.5 | PE-SwBT10L | |||
| 12 | 19 | 22 | 32 | 17 | 29.5 | 12 | M18 X 1.5 | PE-SwBT12L | |||
| 15 | 22 | 27 | 36 | 21 | 32.5 | 15 | M22 X 1.5 | PE-SwBT15L | |||
| 160 Kg/cm2 | 18 | 27 | 32 | 40 | 23.5 | 35.5 | 18 | M26 X 1.5 | PE-SwBT18L | ||
| 22 | 30 | 36 | 44 | 27.5 | 38.5 | 22 | M30 X 2 | PE-SwBT22L | |||
| 100 Kg/cm2 | 28 | 36 | 41 | 47 | 30.5 | 41.5 | 28 | M36 X 2 | PE-SwBT28L | ||
| 35 | 46 | 50 | 56 | 34.5 | 51 | 35 | M45 X 2 | PE-SwBT35L | |||
| 42 | 55 | 60 | 63 | 40 | 56 | 42 | M52 X 2 | PE-SwBT42L | |||
| H | 630 Kg/cm2 | 6 | 14 | 17 | 31 | 16 | 27 | 6 | M14 X 1.5 | PE-SwBT6L | |
| 8 | 17 | 19 | 32 | 17 | 27.5 | 8 | M16 X 1.5 | PE-SwBT8L | |||
| 10 | 19 | 22 | 34 | 17.5 | 30 | 10 | M18 X 1.5 | PE-SwBT10L | |||
| 12 | 22 | 24 | 38 | 21.5 | 31 | 12 | M20 X 1.5 | PE-SwBT12L | |||
| 14 | 22 | 27 | 40 | 22 | 34.5 | 14 | M22 X 1.5 | PE-SwBT14L | |||
| 400 Kg/cm2 | 16 | 24 | 30 | 43 | 24.5 | 36.5 | 16 | M24 X 1.5 | PE-SwBT16L | ||
| 20 | 30 | 36 | 48 | 26.5 | 44.5 | 20 | M30 X 2 | PE-SwBT20L | |||
| 25 | 36 | 46 | 54 | 30 | 50 | 25 | M36 X 2 | PE-SwBT25L | |||
| 250 Kg/cm2 | 30 | 44 | 50 | 62 | 35.5 | 55 | 30 | M42 X 2 | PE-SwBT30L | ||
| 38 | 55 | 60 | 72 | 41 | 63 | 38 | M52 x 2 | PE-SwBT38L | |||
Swivel Tee
|
||||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | I5 | D1 | d1 | PART NO. | |||
| INCH SI ZE OD TUBE | 6000 PSI | 1/4" | 0.55 | 0.67 | 1.26 | 0.62 | 1.06 | 1/4" | M14 X 1.5 | 4PE-SwBT | ||
| 3/8" | 0.66 | 0.75 | 1.22 | 0.59 | 1.12 | 3/8" | M16 X 1.5 | 6PE-SwBT | ||||
| 1/2" | 0.87 | 0.94 | 1.49 | 0.82 | 1.25 | 1/2" | M20 X 1.5 | 8PE-SwBT | ||||
| 3/4" | 1.06 | 1.25 | 1.87 | 1.04 | 1.53 | 3/4" | M27 X 1.5 | 12PE-SwBT | ||||
| 1" | 1.42 | 1.75 | 2.12 | 1.18 | 1.92 | 1" | M36 X 2 | 16PE-SwBT | ||||
| 3000 PSI | 1 1/4" | 1.73 | 1.97 | 2.44 | 1.38 | 2.16 | 1 1/4" | M42 X 2 | 20PE-SwBT | |||
| 1 1/2" | 2.16 | 2.36 | 2.79 | 1.57 | 2.48 | 1 1/2" | M52 x 2 | 24PE-SwBT | ||||
| 2000 PSI | 2" | 2.5 | 2.75 | 3.07 | 1.91 | 3.11 | 2" | M60 X 2 | 32PE-SwBT | |||
