Machine Tools Syndicate
Instrument Valves
2 Valve Manifolds >>

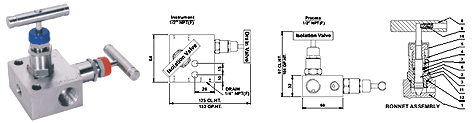

Straight Type
Straight Type
Straight Type
NO DESCRIPTION QTY MATERIAL
1 BODY 1 PE-SS 316
2 BONNET 1 PE-SS 316
3 STEM 1 PE-SS 316
4 BONNET PUSHER 1 PE-SS316
5 LOCK NUT 1 PE-SS 316
6 PACKING 1
7 WASHER 1 PE-SS 316
8 HANDLE 1 PE-SS304
9 GRUB SCREW 1 PE-SS
10 DUST CAP 1 PLASTIC
11 LOCKING PIN 1 PE-SS 304
12 BONNET SEAL 1
Features
2 Valve Manifolds (Straight Type)




Bonnet Assembly
  • 2  valve  manifolds  are  designed  for  remote  or  separate  mounting.Connecting  from process         side   1/2" NPT(F)  and   Instrument  side  1/2" NPT(F)   Connecting  system  impulse  lines  and   transmitters,  having simple  two valves configuration which  allows for easy block or Isolate,Bleed         or Vent valve calibration of a static pressure transmitter or gauge.
  • Bleed/vent connection with s.s. plug will be provided on request.
  • Approximate weight : 0.95 Kg (2.1 Lbs.).
  • Heat code traceability


  • Screwed bonnet design.
  • Bonnet-back seated blow out proof.
  • Spindle-Ground and thread rolled.
  • Spindle tip-Non rotating tip shut off type - stellited,Regulating-stellited and soft seated.
  • Bonnet pusher - silver plated for anti galling freezing for
          increased stem cycle life.
  • Dust cap protects stem threads from externals contamination.

  • Leak tight seal with low operating torque.
Technical Specfications
Size : 1/4", 1/2"
End connection : NPT,BSPT,Socket weld.
Working Pressure : 6000 Psi (413 Bar)
Temperature Rating : PTFE 450 Deg. F (232 Deg.C) Grafoil 700 Deg. F(371 Deg. C)
Material of construction : SS 316, SS 304, Monel,C.S.
Optional Sour Gas service valves are available confirming to NACE Std. MR -
01 - 75
Stem packing : PTFE, Grafoil.
Orifice : Dia. 4.0
All valves are 100% Factory tested prior to shipment.
Applications

Refineries,liquid patroleum gas processing plant,petro-chemical plants, systems difficult to shur off due to solid contents dust, rust, dirt etc.

Manifolds Selection Information Data

Pressure &2500

Testing

   Pneumatic Seat test is performed at 1/4 of working pressure.
   Hydrostatic shell test is performed at 1.5 times the working pressure.
   Optional test are available upon request.

Lubrications

Dye Molly Sulphide.
