Instrument Valves
Monoflange Valve >>
Monoflange Valve
Monoflange Valve Type

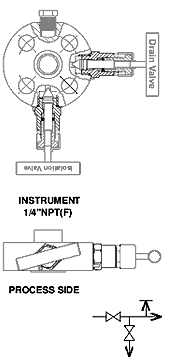

Model MOFV-I

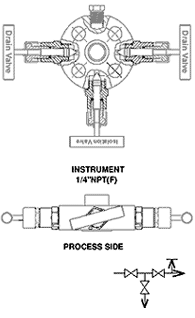

Model MOFV-IB

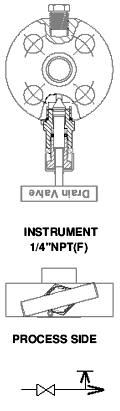

Model MOFV-IBI
| Bonnet Assly. Features : | |
| Design | |
| Screwed bonnet | |
| Bonnet | |
| Back seat blowout proof | |
| Stem | |
| Rolled stem operating threads. | |
| Stem tip | |
| Self centering non rotating, rotating, regulatingand soft seated | |
| Bonnet Pusher | |
| Silver plated for anti galling freezing for increased stem cycle life | |
| Dust Cap | |
| Protects stem
threads from ingrease of contamination. Colour coded identification. |
|
| Handle | |
| Low torque operating | |
| Sealing | |
| Leak tight seal for easy operation of valve. |
| Specifications : | ||
| Size | 1/4", 3/8", 1/2" | |
| End ports | NPT, BSPT, socket weld | |
| Process flange size | 1/2",3/4",1",1-1/2", 2" | |
| Flange pressure rating | 150#, 300#, 600#, 900#, 1500#, 2500# | |
| Flange end | Raise Face. Ring Joint | |
| Bleed port | 1/4", 3/8", 1/2" | |
| Version | Straight & angle | |
| Max. Std. Pressure | 6000 Psi (413 Bar) | |
| Temperature Rating | PTFE 450° F (232°
C) Grafoil 700° F (371° C) |
|
| Material | SS 316, SS 304, C.S., F11, Hastelloy, Monel | |
| Standard seat | Ø4mm | |
| Panel mount option | All valves are 100% Factory tested prior to shipment. | |
