Straight Type
Straight Type
| Straight Type | |||||||||||
| NO | DESCRIPTION | QTY | MATERIAL | ||||||||
| 1 | BODY | 1 | PE-SS 316 | ||||||||
| 2 | BONNET | 1 | PE-SS 316 | ||||||||
| 3 | STEM | 1 | PE-SS 316 | ||||||||
| 4 | BONNET PUSHER | 1 | PE-SS 316 | ||||||||
| 5 | LOCK NUT | 1 | PE-SS 316 | ||||||||
| 6 | PACKING | 1 | |||||||||
| 7 | WASHER | 1 | PE-SS 316 | ||||||||
| 8 | HANDLE | 1 | PE-SS 304 | ||||||||
| 9 | GRUB SCREW | 1 | PE-SS | ||||||||
| 10 | DUST CAP | 1 | PLASTIC | ||||||||
| 11 | LOCKING PIN | 1 | PE-SS 304 | ||||||||
| 12 | BONNET SEAL | 1 | |||||||||
Features
5 Valve Manifolds (Straight Type)

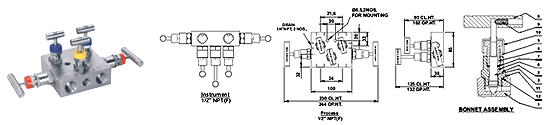

Bonnet Assembly
- 5 valve manifolds are designed for remote or separate mounting.Connecting from process side 1/2" NPT(F) and Instrument side 1/2" NPT(F) Connecting system impulse lines and transmitters, having simple three valves configuration which allows for easy two block or Isolate,one Equaliser valve calibration of a static pressure transmitter or gauge.
- Bleed/vent connection with s.s. plug will be provided on request.
- Approximate weight : xxx Kg (xxx Lbs.).
- Heat code traceability
- Screwed bonnet design.
- Bonnet-back seated blow out proof.
- Spindle - Ground and thread rolled. - Spindle tip-Non rotating tip shut off type - stellited, Regulating-stellited and soft seated.
- Bonnet pusher - silver plated for anti galling freezing for increased stem cycle life.
- Dust cap protects stem threads from externals contamination.
- Leak tight seal with low operating torque.
