Low Pressure Ball Valve
Low Pressure Ball Valve
Low Pressure Ball Valve

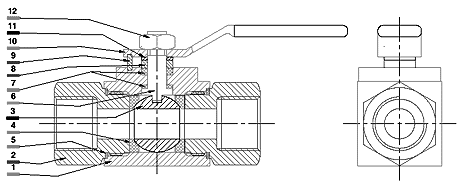

NO DESCRIPTION QTY MATERIAL
1 BODY 1 SS 316
2 END
CONNECTOR
1 SS 316
3 BALL 1 SS 316
4 STEM 1 SS 316
5 BALL SEAT 2 PTFE
6 CONNECTOR SEAL 1 PTFE
7 STEM SEAL 2 PTFE
8 STEM WASHER 1 SS 316
9 LOCK PIN 1 SS 304
10 HANDLE 1 SS 304
11 SPRING WASHER 1 SS 304
12 LOCK NUT 1 SS 304
Specifications :
Size 1/4" to 1"
End ports BSP, NPT, BSPT, Flange End, ODT
Max.Std. Pressure 3000 Psi (207 Bar)
Temperature Rating PTFE 450 F (232C)
Grafoil 700 F (371 C)
Material SS 316, SS 304, C.S.,Hastelloy, Monel
Ball Seat PTFE, Delrin
Panel mount option All valves are 100% Factory tested prior to shipment.
