KS Series Quick Coupling >>

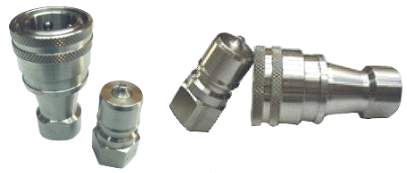

KS SeriesQuick Coupling
KS SeriesQuick Coupling
Features :

For general purpose, medium pressure.
• Two-way shut-off with an automatic shut-off valve incorporated into both the
  socket and the plug.
• Automatic shut-off valves in socket and plug provide an instant, perfect seal
  when coupling is disconnected.
• Packing be selected according to fluid type.
• Highly accurate machining technology creates an extremely tight seal.
• Designed for a wide variety of applications.

Applications :

  Material

Recommended Fluids Applications
Stainless steel 304 Acid, alkali, salty water • Water piping, sea water
• Oxygen, acetylene
• Steam piping
• Chemicals, chemical plants
Hight-pressure gas (N2, Freon, etc)
Specifications :
Material Stainless steel
Size 1/4",3/8" 1/2",3/4",1" 11/4", 11/2" 2"
Working pressure (kg/cm2) 75 45 30 20
Maximum pressure (kg/cm2) 100 65 45 30
Packing material and
operating temperature
Nitrile butadiene rubber -10°C ~ +80°C Optional
Viton -10°C ~ +180°C Standard Material
Type of connection Female thread for both socket and plug
Structure :
When disconnected......
The socket and plug valves seal instantly, automatically shutting off fluid flow to prevent leakage.
When connected
The socket and plug valves push together, opening to permit free flow of fluid through coupling. An O-ring in the socket seals the plug surface preventing any leakage.
Interchangeability :

Different size sockets and plugs are not interchangeable.
Precaution :

    * Select packing material in accordance with the type and temperature of fluid.
    * Dust, foreign matter and flaws may cause leakage.


Dimensions :

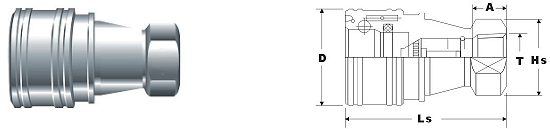

Socket
Part No. Size Ls D A Hs T
KS-2S 1/4 PT 58 28 14 2Hex. 17*22 φ 1/4 PE-PT
KS-3S 3/8 PT 65 35 15 2Hex. 22*25 φ 3/8 PE-PT
KS-4S 1/2 PT 72 45 15 2Hex. 26*32 φ 1/2 PE-PT
KS-6S 3/4 PT 90 55 19 2Hex. 33*39 φ 3/4 PE-PT
KS-8S 1" PT 102 65 20 2Hex. 41*48 φ 1" PE-PT
KS-10S 11/4" PT 115 77.5 24 2Hex. 54*59 φ 11/4" PE-PT
KS-12S 11/2" PT 124 87.5 24 2Hex. 63*69 φ 11/2" PE-PT
KS-16S 2" PT 132 109 27 2Hex. 77*86 φ 2" PE-PT

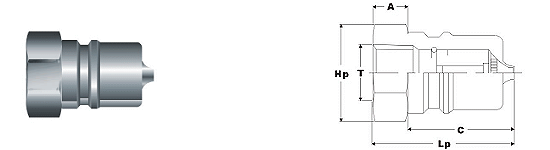

Plug
Part No. Size Ls D A Hs T
KS-2P 1/4 PT 36 22 14 Hex. 17 1/4 PE-PT
KS-3P 3/8 PT 40 25 15 Hex. 21 3/8 PE-PT
KS-4P 1/2 PT 44 28 16 Hex. 27 1/2 PE-PT
KS-6P 3/4 PT 54 36 18 Hex. 35 3/4 PE-PT
KS-8P 1" PT 62 40 20 Hex. 41 1" PE-PT
KS-10P 11/4" PT 70 45 24 *1Hex. 54 11/4" PE-PT
KS-12P 11/2" PT 75 49 24 *2Hex. 63 11/2" PE-PT
KS-16P 2" PT 80 52 27 2Hex. 77*84 φ 2" PE-PT
1Stainless steel: 2hex. 54 x φ59 2 Stainless steel: 2hex. 63 x φ69
