Instrumentation Ball Valve
Instrumentation Ball Valve
Instrumentation Ball Valve
|
|||||||||||

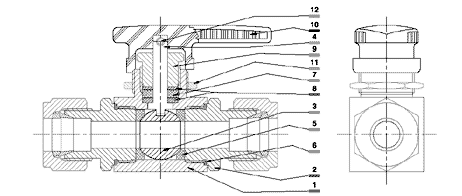

| NO | DESCRIPTION | QTY | MATERIAL | ||||||||
| 1 | BODY | 1 | SS 316 | ||||||||
| 2 | END CONNECTOR | 2 | SS 316 | ||||||||
| 3 | BALL | 1 | SS 316 | ||||||||
| 4 | STEM | 1 | SS316 | ||||||||
| 5 | BALL SEAT | 2 | PTFE | ||||||||
| 6 | CONNECTOR SEAL | 2 | PTFE | ||||||||
| 7 | STEM SEAL | 1 | PTFE | ||||||||
| 8 | STEM WASHER | 2 | SS 316 | ||||||||
| 9 | LOCK NUT | 1 | SS 316 | ||||||||
| 10 | HANDLE | 1 | PLASTIC | ||||||||
| 11 | PANEL NUT | 1 | SS 316 | ||||||||
| 12 | GRUBE SCREW | 1 | SS | ||||||||
Instrumentation Ball Valves provide quick 1/4 turn shut off or directional control of fluids utilized in process power and
instrumentation applications.
| Specifications : | ||
| Size | 1/4" to 1" | |
| End ports | BSP, NPT, BSPT, Flange End, ODT | |
| Max.Std. Pressure | 3000 Psi (207 Bar) | |
| Temperature Rating | PTFE 450° F (232°C) Grafoil 700° F (371° C) |
|
| Material | SS 316, SS 304, C.S.,Hastelloy, Monel | |
| Ball Seat | PTFE, Delrin | |
| Panel mount option | All valves are 100% Factory tested prior to shipment. | |
