Nuts and Ferrule
Fittings >>
Fittings >>

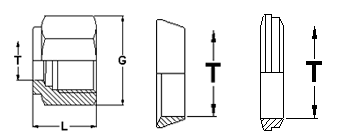

Nuts and Ferrule Fittings
Nuts and Ferrule Fittings
Nuts and Ferrule Fittings
|
|||||||||||
| TUBE OD | L | G | PART NO. | ||||||||
| inch | mm | mm | NUT | FRONT FERRULE | BACK FERRULE | ||||||
| 3 | 12 | 11 | D-N3 | D-FF3 | PE-D-FB3 | ||||||
| 6 | 12.7 | 14 | D-N6 | D-FF6 | PE-D-FB6 | ||||||
| 8 | 13.5 | 16 | D-N8 | D-FF8 | PE-D-FB8 | ||||||
| 10 | 15.1 | 19 | D-N10 | D-FF10 | PE-D-FB10 | ||||||
| 12 | 17.5 | 22 | D-N12 | D-FF12 | PE-D-FB12 | ||||||
| 14 | 17.5 | 25 | D-N14 | D-FF14 | PE-D-FB14 | ||||||
| 15 | 17.5 | 25 | D-N15 | D-FF15 | PE-D-FB15 | ||||||
| 16 | 17.5 | 25 | D-N16 | D-FF16 | PE-D-FB16 | ||||||
| 18 | 17.5 | 30 | D-N18 | D-FF18 | PE-D-FB18 | ||||||
| 20 | 17.5 | 32 | D-N20 | D-FF20 | PE-D-FB20 | ||||||
| 22 | 17.5 | 32 | D-N22 | D-FF22 | PE-D-FB22 | ||||||
| 25 | 20.6 | 38 | D-N25 | D-FF25 | PE-D-FB25 | ||||||
| TUBE OD | L | G | PART NO. | ||
| inch | mm | mm | NUT | FRONT FERRULE | BACK FERRULE |
| 1/8 | 12 | 11 | 2D-N | 2D-FF | 2PE-D-FB |
| 1/4 | 12.7 | 14 | 4D-N | 4D-FF | 4PE-D-FB |
| 5/16 | 13.5 | 16 | 5D-N | 5D-FF | 5PE-D-FB |
| 3/8 | 14.5 | 17 | 6D-N | 6D-FF | 6PE-D-FB |
| 1/2 | 17.5 | 22 | 8D-N | 8D-FF | 8PE-D-FB |
| 5/8 | 17.5 | 25 | 10D-N | 10D-FF | 10PE-D-FB |
| 3/4 | 17.5 | 30 | 12D-N | 12D-FF | 12PE-D-FB |
| 7/8 | 17.5 | 32 | 14D-N | 14D-FF | 14PE-D-FB |
| 1 | 20.6 | 38 | 16D-N | 16D-FF | 16PE-D-FB |
