Instrument Valves

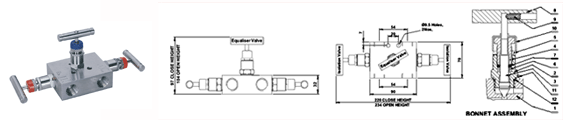

3 Valve Manifolds >>
Straight Type
Straight Type
Straight Type
NO DESCRIPTION QTY MATERIAL
1 BODY 1 PE-SS 316
2 BONNET 1 PE-SS 316
3 STEM 1 PE-SS 316
4 BONNET PUSHER 1 PE-SS 316
5 LOCK NUT 1 PE-SS 316
6 PACKING 1
7 WASHER 1 PE-SS 316
8 HANDLE 1 PE-SS 304
9 GRUB SCREW 1 PE-SS
10 DUST CAP 1 PLASTIC
11 LOCKING PIN 1 PE-SS 304
12 BONNET SEAL 1
Features
3 Valve Manifolds (Straight Type)




Bonnet Assembly
  • 3  valve  manifolds  are  designed  for  remote  or  separate  mounting.Connecting  from process         side   1/2" NPT(F)  and   Instrument  side  1/2" NPT(F)   Connecting  system  impulse  lines  and   transmitters,  having  simple  three  valves  configuration  which  allows  for  easy  two  block  or  Isolate,one Equaliser valve calibration of a static pressure transmitter or gauge.
  • Bleed/vent connection with s.s. plug will be provided on request.
  • Approximate weight : xxx Kg (xxx Lbs.).
  • Heat code traceability


  • Screwed bonnet design.
  • Bonnet-back seated blow out proof.
  • Spindle - Ground and thread rolled. - Spindle tip-Non rotating tip shut off type - stellited, Regulating-stellited and soft seated.
  • Spindle tip-Non rotating tip shut off type - stellited,Regulating-stellited and soft seated.
  • Bonnet pusher - silver plated for anti galling freezing for increased stem cycle life.
  • Dust cap protects stem threads from externals contamination.
  • Leak tight seal with low operating torque.
Technical Specfications
Applications

Refineries, liquid patroleum gas processing plant, petro-chemical plants, systems difficult to shur off due to solid contents dust,rust,dirt etc.

Manifolds Selection Information Data

Pressure &temperature ratings are selected from ANSI B 16.34 for standard class 2500

Testing

   Pneumatic Seat test is performed at 1/4 of working pressure.
   Hydrostatic shell test is performed at 1.5 times the working pressure.
   Optional test are available upon request.

Lubrications

Dye Molly Sulphide.
